Name: NTE222
Brand: NTE Electronics, Inc
SKU: NTE222
Price: 13.54 USD
Availability: InStock

REF: NTE222 NTE Electronics, Inc

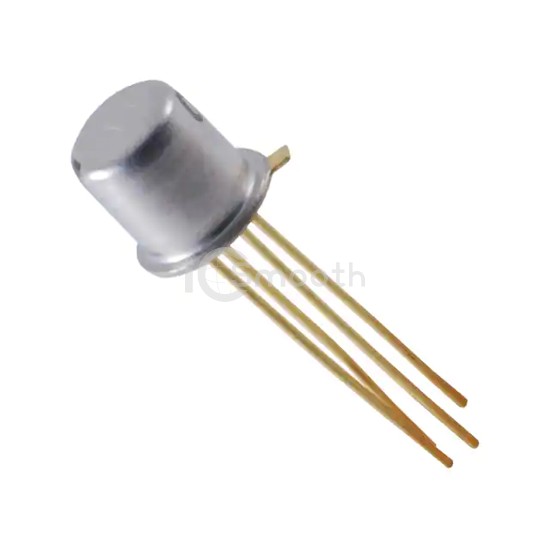

NTE222

MOSFET N-CHANNEL 25V 50MA TO72

NTE222 is a Transistors - FETs, MOSFETs - Single manufactured by NTE Electronics, Inc. MOSFET N-CHANNEL 25V 50MA TO72. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 175°C (TJ), package / case TO-206AF, TO-72-4 Metal Can.

Datasheet Request a Quote

In Stock: 3

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	50mA (Tj)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	-
Vgs(th) (Max) @ Id	4V @ 20µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	3300 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	360mW (Ta), 1.2mW (Tc)
Operating Temperature	-65°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-72
Package / Case	TO-206AF, TO-72-4 Metal Can
