Name: R5524N002B-TR-FE
Brand: Nisshinbo Micro Devices Inc.
SKU: R5524N002B-TR-FE
Price: 0.80 USD
Availability: InStock

REF: R5524N002B-TR-FE Nisshinbo Micro Devices Inc.

R5524N002B-TR-FE

Nisshinbo Micro Devices Inc.

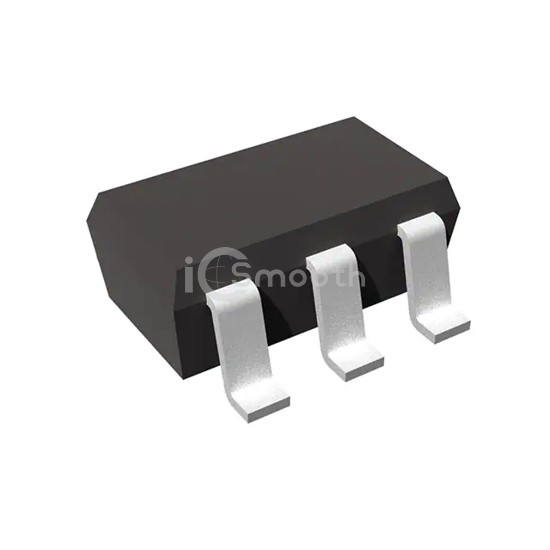

IC PWR SWITCH N-CHAN 1:1 SOT23-5

R5524N002B-TR-FE is a PMIC - Power Distribution Switches, Load Drivers manufactured by Nisshinbo Micro Devices Inc.. IC PWR SWITCH N-CHAN 1:1 SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case SC-74A, SOT-753.

Datasheet Request a Quote

In Stock: 5,500

Tiered Pricing USD

1+ $0.8000 —

10+ $0.5700 -29%

25+ $0.5124 -36%

100+ $0.4495 -44%

250+ $0.4195 -48%

500+ $0.4014 -50%

1,000+ $0.3865 -52% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	USB Switch
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	-
Voltage - Load	2.2V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	800mA
Rds On (Typ)	100mOhm
Input Type	Non-Inverting
Features	-
Fault Protection	Over Current, Over Temperature, Reverse Current, UVLO
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-5
Package / Case	SC-74A, SOT-753
