Name: R5523N001B-TR-FE
Brand: Nisshinbo Micro Devices Inc.
SKU: R5523N001B-TR-FE
Price: 0.88 USD
Availability: InStock

REF: R5523N001B-TR-FE Nisshinbo Micro Devices Inc.

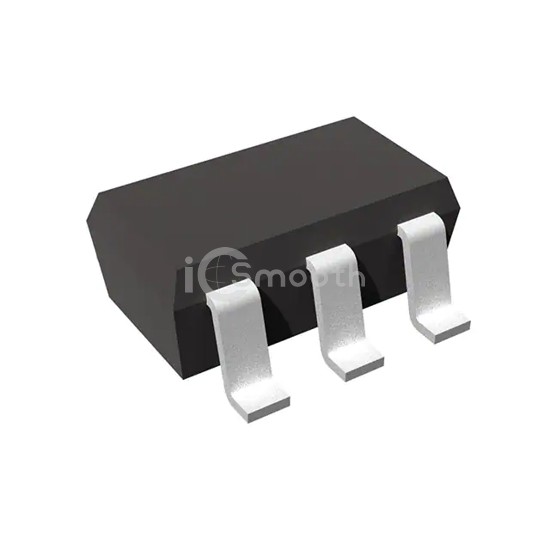

R5523N001B-TR-FE

Nisshinbo Micro Devices Inc.

IC PWR SWITCH P-CHAN 1:1 SOT23-5

R5523N001B-TR-FE is a PMIC - Power Distribution Switches, Load Drivers manufactured by Nisshinbo Micro Devices Inc.. IC PWR SWITCH P-CHAN 1:1 SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case SC-74A, SOT-753.

Datasheet Request a Quote

In Stock: 5,503

Tiered Pricing USD

1+ $0.8800 —

10+ $0.6290 -29%

25+ $0.5668 -36%

100+ $0.4982 -43%

250+ $0.4654 -47%

500+ $0.4456 -49%

1,000+ $0.4294 -51% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	USB Switch
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	P-Channel
Interface	-
Voltage - Load	2.2V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	1.3A
Rds On (Typ)	130mOhm
Input Type	Non-Inverting
Features	-
Fault Protection	Over Current, Over Temperature, Short Circuit, UVLO
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-5
Package / Case	SC-74A, SOT-753
