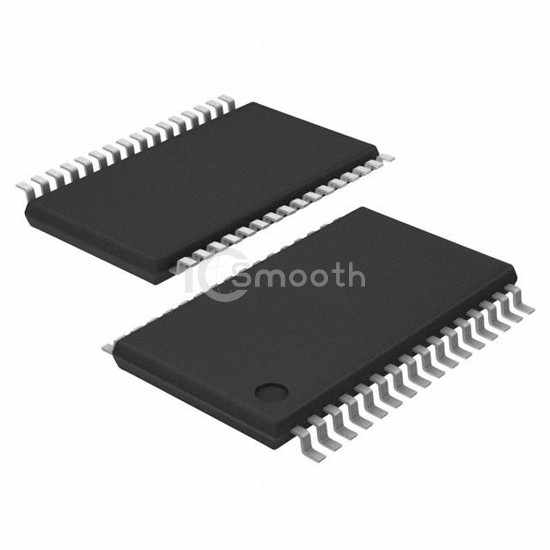

Name: NJU72750AV-TE1
Brand: Nisshinbo Micro Devices Inc.
SKU: NJU72750AV-TE1
Price: 2.22 USD
Availability: InStock

REF: NJU72750AV-TE1 Nisshinbo Micro Devices Inc.

NJU72750AV-TE1

Nisshinbo Micro Devices Inc.

7-INPUT / 3-OUTPUT DUAL ANALOG S

NJU72750AV-TE1 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Nisshinbo Micro Devices Inc.. 7-INPUT / 3-OUTPUT DUAL ANALOG S. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 32-LSSOP (0.220", 5.60mm Width), number of circuits 2.

Datasheet Request a Quote

In Stock: 8,936

Specifications

18 parameters

Product Status	Active
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	7:3
Number of Circuits	2
On-State Resistance (Max)	40Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	9V ~ 7.5V, ±4.5V ~ 15V
Voltage - Supply, Dual (V±)	9V ~ 7.5V, ±4.5V ~ 15V
Switch Time (Ton, Toff) (Max)	-

-3db Bandwidth	-
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	-
Current - Leakage (IS(off)) (Max)	-
Crosstalk	-110dB @ 1MHz
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	32-LSSOP (0.220", 5.60mm Width)
Supplier Device Package	32-SSOP
