Name: NJU211M#
Brand: Nisshinbo Micro Devices Inc.
SKU: NJU211M#
Price: 1.01 USD
Availability: InStock

REF: NJU211M# Nisshinbo Micro Devices Inc.

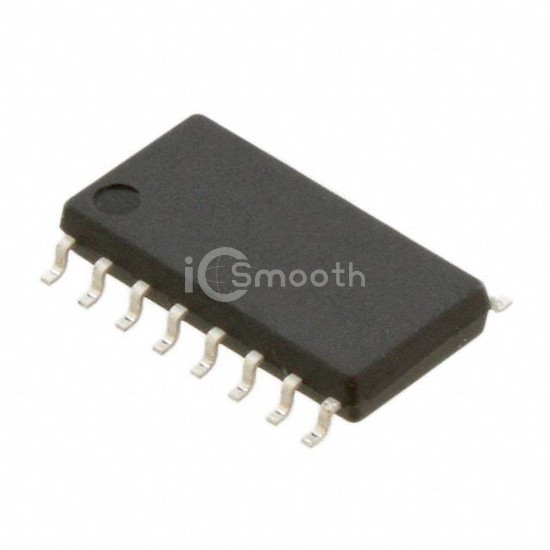

NJU211M#

Nisshinbo Micro Devices Inc.

IC SWITCH QUAD SPST 16DMP

NJU211M# is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Nisshinbo Micro Devices Inc.. IC SWITCH QUAD SPST 16DMP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), package / case 16-SOIC (0.209", 5.30mm Width), number of circuits 4.

Datasheet Request a Quote

In Stock: 8,397

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	175Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	-
Voltage - Supply, Dual (V±)	±15V
Switch Time (Ton, Toff) (Max)	1µs, 500ns

-3db Bandwidth	-
Charge Injection	20pC
Channel Capacitance (CS(off), CD(off))	5pF, 5pF
Current - Leakage (IS(off)) (Max)	5nA
Crosstalk	-90dB @ 100kHz
Operating Temperature	0°C ~ 70°C (TA)
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.209", 5.30mm Width)
Supplier Device Package	16-DMP
