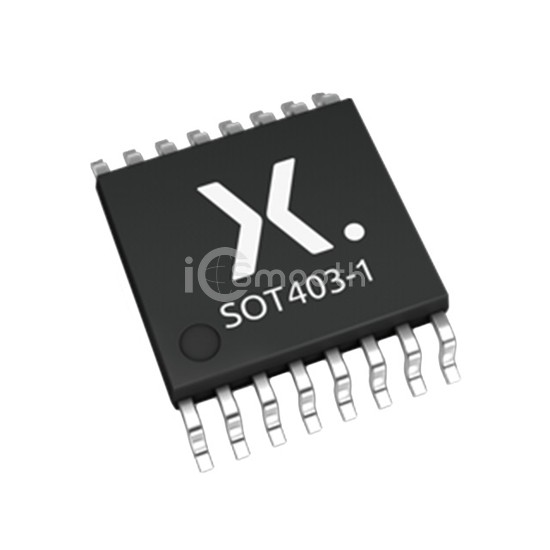

Name: XS3A2467PWJ
Brand: Nexperia USA Inc.
SKU: XS3A2467PWJ
Price: 0.65 USD
Availability: InStock

REF: XS3A2467PWJ Nexperia USA Inc.

XS3A2467PWJ

DOUBLE-POLE DOUBLE-THROW ANALOG

XS3A2467PWJ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Nexperia USA Inc.. DOUBLE-POLE DOUBLE-THROW ANALOG. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-TSSOP (0.173", 4.40mm Width), number of circuits 2.

Datasheet Request a Quote

In Stock: 2,851

Tiered Pricing USD

1+ $0.6500 —

10+ $0.4600 -29%

25+ $0.4120 -37%

100+ $0.3600 -45%

250+ $0.3352 -48%

500+ $0.3202 -51%

1,000+ $0.3078 -53% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	DPDT
Multiplexer/Demultiplexer Circuit	2:2
Number of Circuits	2
On-State Resistance (Max)	900mOhm
Channel-to-Channel Matching (ΔRon)	130mOhm (Max)
Voltage - Supply, Single (V+)	1.4V ~ 4.3V
Voltage - Supply, Dual (V±)	1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max)	40ns, 20ns

-3db Bandwidth	40MHz
Charge Injection	15pC
Channel Capacitance (CS(off), CD(off))	35pF
Current - Leakage (IS(off)) (Max)	10nA
Crosstalk	-90dB @ 100kHz
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	16-TSSOP
