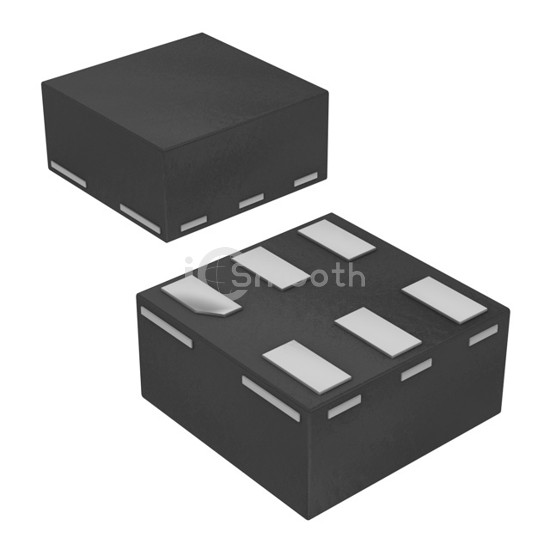

Name: XS3A1T3157GSH
Brand: Nexperia USA Inc.
SKU: XS3A1T3157GSH
Price: 0.24 USD
Availability: InStock

REF: XS3A1T3157GSH Nexperia USA Inc.

XS3A1T3157GSH

Nexperia USA Inc.

XS3A1T3157GS/SOT1202/X2SON6

XS3A1T3157GSH is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Nexperia USA Inc.. XS3A1T3157GS/SOT1202/X2SON6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 6-XFDFN, number of circuits 1.

Datasheet Request a Quote

In Stock: 1,636

Tiered Pricing USD

1+ $0.2400 —

10+ $0.1650 -31%

25+ $0.1460 -39%

100+ $0.1250 -48%

250+ $0.1149 -52%

500+ $0.1089 -55%

1,000+ $0.1039 -57%

2,500+ $0.0986 -59% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	900mOhm
Channel-to-Channel Matching (ΔRon)	100mOhm
Voltage - Supply, Single (V+)	1.4V ~ 4.3V
Voltage - Supply, Dual (V±)	1.4V ~ 4.3V
Switch Time (Ton, Toff) (Max)	40ns, 20ns

-3db Bandwidth	40MHz
Charge Injection	15pC
Channel Capacitance (CS(off), CD(off))	35pF
Current - Leakage (IS(off)) (Max)	10nA
Crosstalk	-90dB @ 100kHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	6-XFDFN
Supplier Device Package	6-XSON, SOT1202 (1x1)
