PXP1500-100QSJ

In Stock: 8,919

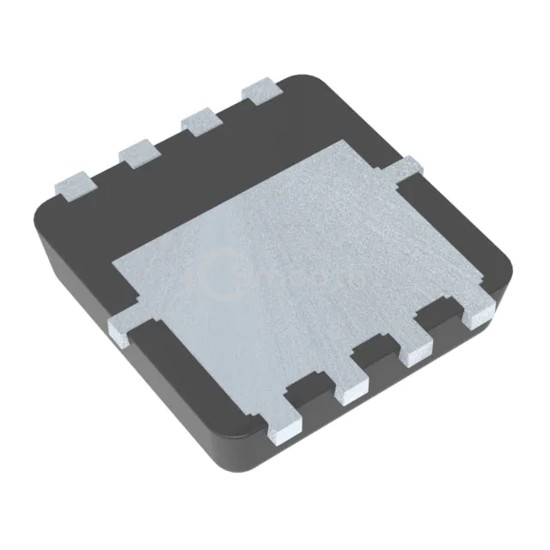

PXP1500-100QSJ - Nexperia USA Inc. - Transistors - FETs, MOSFETs - Single
REF: PXP1500-100QSJ Nexperia USA Inc.
PXP1500-100QSJ

Nexperia USA Inc.

MOSFET P-CH 100V 700MA LFPAK33

PXP1500-100QSJ is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET P-CH 100V 700MA LFPAK33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 8,919

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C700mA (Ta), 1.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs1.5Ohm @ 700mA, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs4.5 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds159 pF @ 50 V
FET Feature-
Power Dissipation (Max)1.7W (Ta), 16.2W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageMLPAK33
Package / Case8-PowerVDFN
