Name: PXP020-20QXJ
Brand: Nexperia USA Inc.
SKU: PXP020-20QXJ
Price: 0.60 USD
Availability: InStock

REF: PXP020-20QXJ Nexperia USA Inc.

PXP020-20QXJ

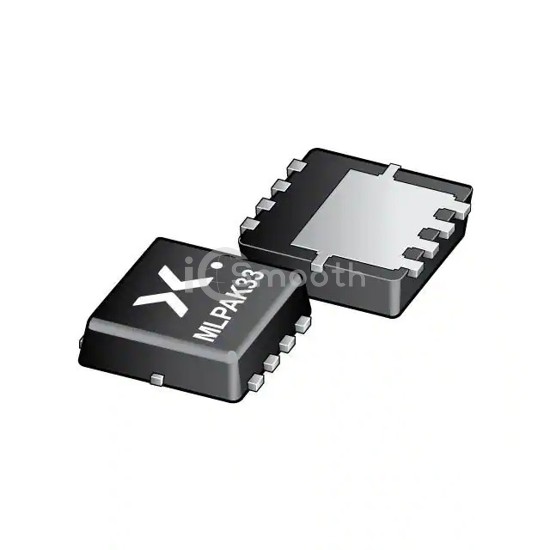

PXP020-20QX/SOT8002/MLPAK33

PXP020-20QXJ is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. PXP020-20QX/SOT8002/MLPAK33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 5,288

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	8A (Ta), 23.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	20mOhm @ 7.7A, 4.5V
Vgs(th) (Max) @ Id	1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	29.1 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	1900 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.7W (Ta), 15W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	MLPAK33
Package / Case	8-PowerVDFN
