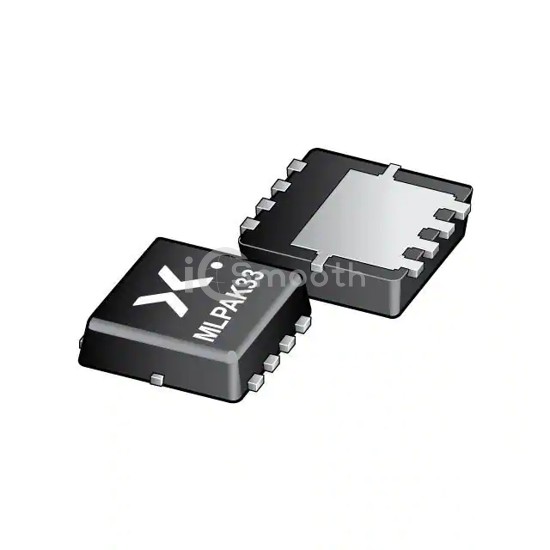

Name: PXP012-30QLJ
Brand: Nexperia USA Inc.
SKU: PXP012-30QLJ
Price: 0.63 USD
Availability: InStock

REF: PXP012-30QLJ Nexperia USA Inc.

PXP012-30QLJ

P-CHANNEL TRENCH MOSFET

PXP012-30QLJ is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. P-CHANNEL TRENCH MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 5,210

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	8.9A (Ta), 38.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	12.8mOhm @ 9A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	43.4 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	1400 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	1.7W (Ta), 32W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	MLPAK33
Package / Case	8-PowerVDFN
