PXP011-20QXJ

In Stock: 3,000

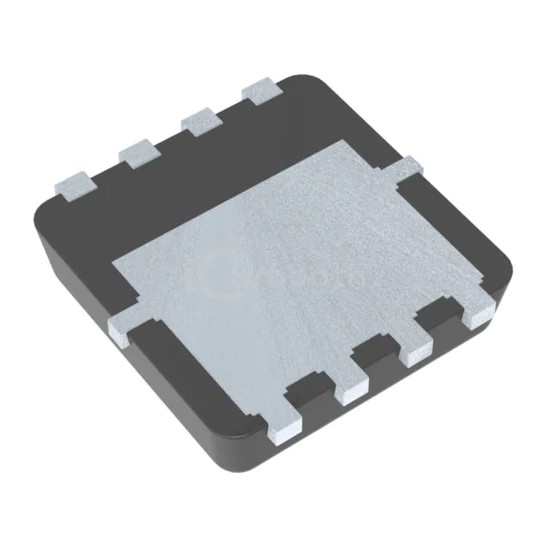

PXP011-20QXJ - Nexperia USA Inc. - Transistors - FETs, MOSFETs - Single
REF: PXP011-20QXJ Nexperia USA Inc.
PXP011-20QXJ

Nexperia USA Inc.

PXP011-20QX/SOT8002/MLPAK33

PXP011-20QXJ is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. PXP011-20QX/SOT8002/MLPAK33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 3,000

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C10.5A (Ta), 56.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs11.4mOhm @ 10.5A, 4.5V
Vgs(th) (Max) @ Id1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs65.1 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds4200 pF @ 10 V
FET Feature-
Power Dissipation (Max)1.8W (Ta), 50W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageMLPAK33
Package / Case8-PowerVDFN
