Name: PXN9R0-30QLJ
Brand: Nexperia USA Inc.
SKU: PXN9R0-30QLJ
Price: 0.58 USD
Availability: InStock

REF: PXN9R0-30QLJ Nexperia USA Inc.

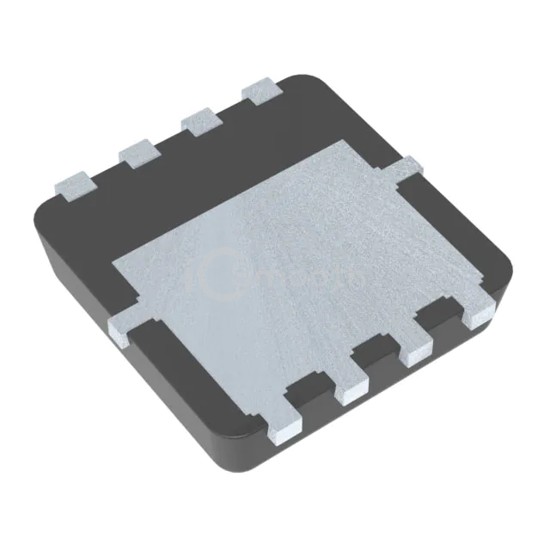

PXN9R0-30QLJ

PXN9R0-30QL/SOT8002/MLPAK33

PXN9R0-30QLJ is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. PXN9R0-30QL/SOT8002/MLPAK33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 2,059

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	11.4A (Ta), 41.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	9.1mOhm @ 11.4A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	20.7 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	865 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	1.9W (Ta), 26W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	MLPAK33
Package / Case	8-PowerVDFN
