Name: PXN6R2-25QLJ
Brand: Nexperia USA Inc.
SKU: PXN6R2-25QLJ
Price: 0.60 USD
Availability: InStock

REF: PXN6R2-25QLJ Nexperia USA Inc.

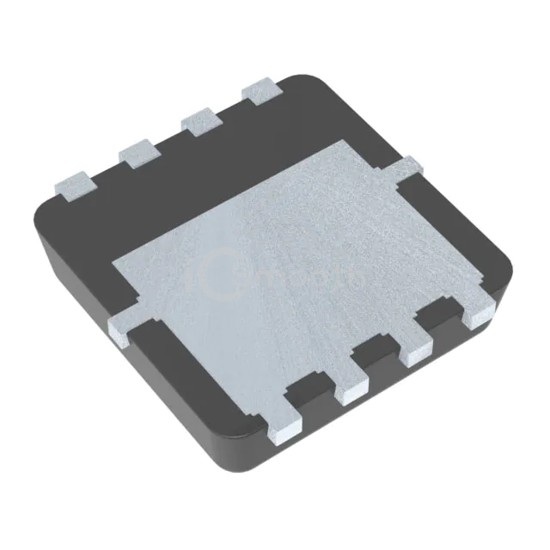

PXN6R2-25QLJ

PXN6R2-25QL/SOT8002/MLPAK33

PXN6R2-25QLJ is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. PXN6R2-25QL/SOT8002/MLPAK33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 2,811

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	13.1A (Ta), 65A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6.2mOhm @ 13.1A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	25.5 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1200 pF @ 12.5 V
FET Feature	-
Power Dissipation (Max)	1.7W (Ta), 40.3W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	MLPAK33
Package / Case	8-PowerVDFN
