PXN5R4-30QLJ

In Stock: 11,956

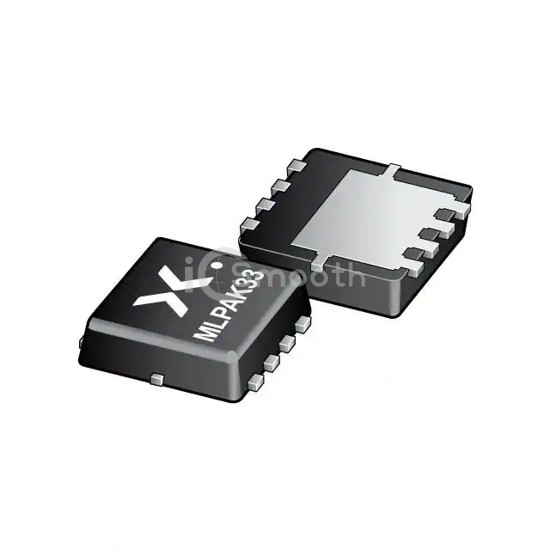

PXN5R4-30QLJ - Nexperia USA Inc. - Transistors - FETs, MOSFETs - Single
REF: PXN5R4-30QLJ Nexperia USA Inc.
PXN5R4-30QLJ

Nexperia USA Inc.

PXN5R4-30QL/SOT8002/MLPAK33

PXN5R4-30QLJ is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. PXN5R4-30QL/SOT8002/MLPAK33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 11,956

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C14A (Ta), 66A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs5.4mOhm @ 14.2A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs36.3 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1600 pF @ 15 V
FET Feature-
Power Dissipation (Max)1.8W (Ta), 39W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageMLPAK33
Package / Case8-PowerVDFN
