PXN012-60QLJ

In Stock: 6,619

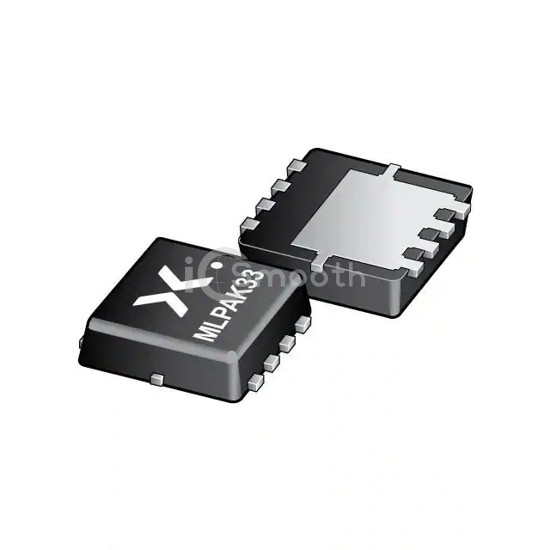

PXN012-60QLJ - Nexperia USA Inc. - Transistors - FETs, MOSFETs - Single
REF: PXN012-60QLJ Nexperia USA Inc.
PXN012-60QLJ

Nexperia USA Inc.

PXN012-60QL/SOT8002/MLPAK33

PXN012-60QLJ is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. PXN012-60QL/SOT8002/MLPAK33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 6,619

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C42A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs11.5mOhm @ 10A, 10V
Vgs(th) (Max) @ Id2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs18.77 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds957 pF @ 30 V
FET Feature-
Power Dissipation (Max)34.7W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageMLPAK33
Package / Case8-PowerVDFN
