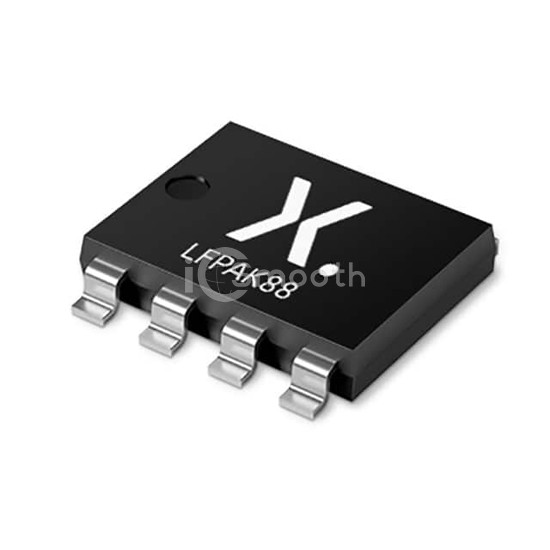

Name: PSMNR90-40SSHJ
Brand: Nexperia USA Inc.
SKU: PSMNR90-40SSHJ
Price: 4.59 USD
Availability: InStock

REF: PSMNR90-40SSHJ Nexperia USA Inc.

PSMNR90-40SSHJ

Nexperia USA Inc.

MOSFET N-CH 40V 375A LFPAK88

PSMNR90-40SSHJ is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 40V 375A LFPAK88. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1235.

Datasheet Request a Quote

In Stock: 2

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	375A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	0.9mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	3.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	166 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	12888 pF @ 25 V
FET Feature	Schottky Diode (Body)
Power Dissipation (Max)	375W (Ta)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	LFPAK88 (SOT1235)
Package / Case	SOT-1235
