PSMNR55-40SSHJ

In Stock: 4,413

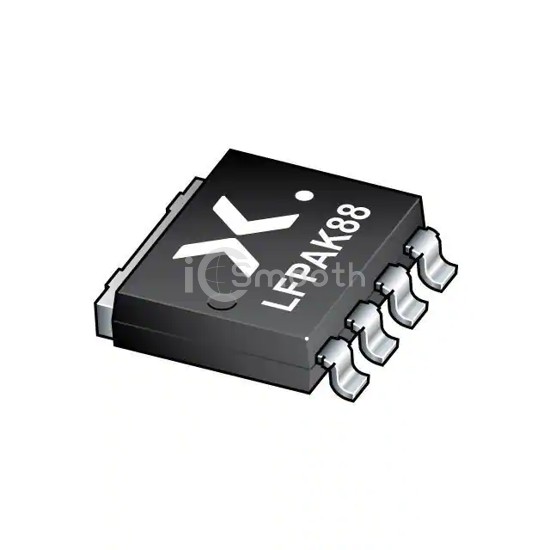

PSMNR55-40SSHJ - Nexperia USA Inc. - Transistors - FETs, MOSFETs - Single
REF: PSMNR55-40SSHJ Nexperia USA Inc.
PSMNR55-40SSHJ

Nexperia USA Inc.

PSMNR55-40SSH/SOT1235/LFPAK88

PSMNR55-40SSHJ is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. PSMNR55-40SSH/SOT1235/LFPAK88. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1235.

Datasheet Request a Quote

In Stock: 4,413

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C500A (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs0.55mOhm @ 25A, 10V
Vgs(th) (Max) @ Id3.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs267 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds21162 pF @ 25 V
FET Feature-
Power Dissipation (Max)375W (Ta)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK88 (SOT1235)
Package / CaseSOT-1235
