Name: PSMN7R5-30MLDX
Brand: Nexperia USA Inc.
SKU: PSMN7R5-30MLDX
Price: 0.78 USD
Availability: InStock

REF: PSMN7R5-30MLDX Nexperia USA Inc.

PSMN7R5-30MLDX

Nexperia USA Inc.

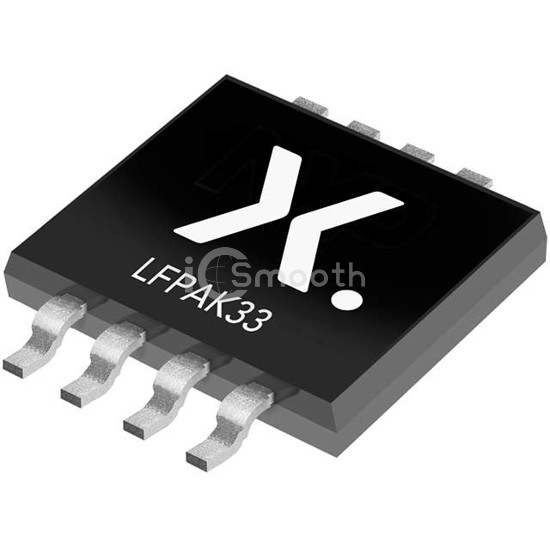

MOSFET N-CH 30V 57A LFPAK33

PSMN7R5-30MLDX is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 30V 57A LFPAK33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1210, 8-LFPAK33 (5-Lead).

Datasheet Request a Quote

In Stock: 7,532

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	57A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	7.6mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	11.3 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	655 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	45W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	LFPAK33
Package / Case	SOT-1210, 8-LFPAK33 (5-Lead)
