PSMN7R0-30MLC,115

In Stock: 6,621

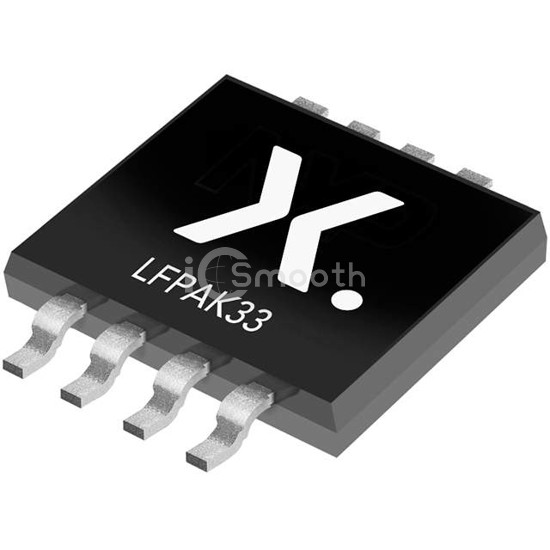

PSMN7R0-30MLC,115 - Nexperia USA Inc. - Transistors - FETs, MOSFETs - Single
REF: PSMN7R0-30MLC,115 Nexperia USA Inc.
PSMN7R0-30MLC,115

Nexperia USA Inc.

MOSFET N-CH 30V 67A LFPAK33

PSMN7R0-30MLC,115 is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 30V 67A LFPAK33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1210, 8-LFPAK33 (5-Lead).

Datasheet Request a Quote

In Stock: 6,621

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C67A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs7mOhm @ 15A, 10V
Vgs(th) (Max) @ Id2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs17.9 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1076 pF @ 15 V
FET Feature-
Power Dissipation (Max)57W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK33
Package / CaseSOT-1210, 8-LFPAK33 (5-Lead)
