PSMN6R1-25MLDX

In Stock: 5,222

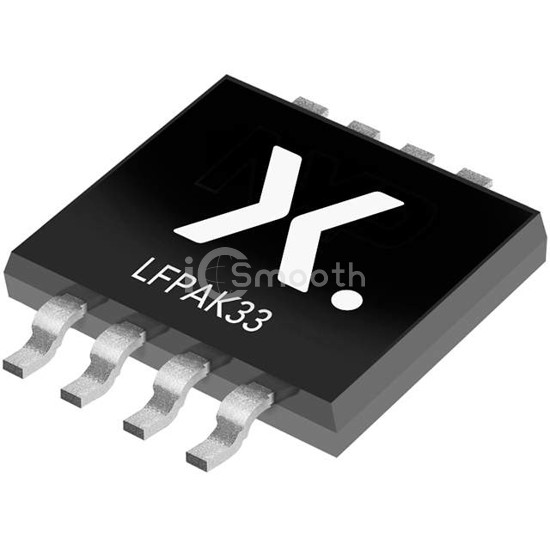

PSMN6R1-25MLDX - Nexperia USA Inc. - Transistors - FETs, MOSFETs - Single
REF: PSMN6R1-25MLDX Nexperia USA Inc.
PSMN6R1-25MLDX

Nexperia USA Inc.

MOSFET N-CH 25V 60A LFPAK33

PSMN6R1-25MLDX is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 25V 60A LFPAK33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1210, 8-LFPAK33 (5-Lead).

Datasheet Request a Quote

In Stock: 5,222

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs7.24mOhm @ 15A, 10V
Vgs(th) (Max) @ Id2.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs10.7 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds702 pF @ 12 V
FET FeatureSchottky Diode (Body)
Power Dissipation (Max)42W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK33
Package / CaseSOT-1210, 8-LFPAK33 (5-Lead)
