Name: PSMN4R8-100YSEX
Brand: Nexperia USA Inc.
SKU: PSMN4R8-100YSEX
Price: 3.45 USD
Availability: InStock

REF: PSMN4R8-100YSEX Nexperia USA Inc.

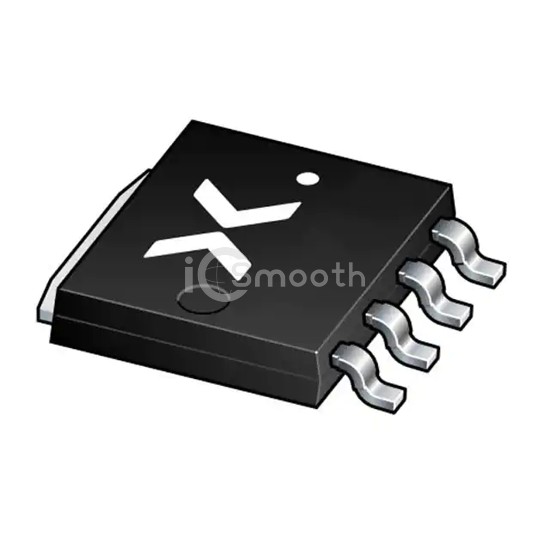

PSMN4R8-100YSEX

Nexperia USA Inc.

PSMN4R8-100YSE/SOT1023/4 LEADS

PSMN4R8-100YSEX is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. PSMN4R8-100YSE/SOT1023/4 LEADS. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1023, 4-LFPAK.

Datasheet Request a Quote

In Stock: 6,862

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	120A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	4.8mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	3.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	120 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	8290 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	294W (Ta)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	LFPAK56, Power-SO8
Package / Case	SOT-1023, 4-LFPAK
