PSMN3R9-25MLC,115

In Stock: 18
PSMN3R9-25MLC,115 - Nexperia USA Inc. - Transistors - FETs, MOSFETs - Single
REF: PSMN3R9-25MLC,115 Nexperia USA Inc.
PSMN3R9-25MLC,115

Nexperia USA Inc.

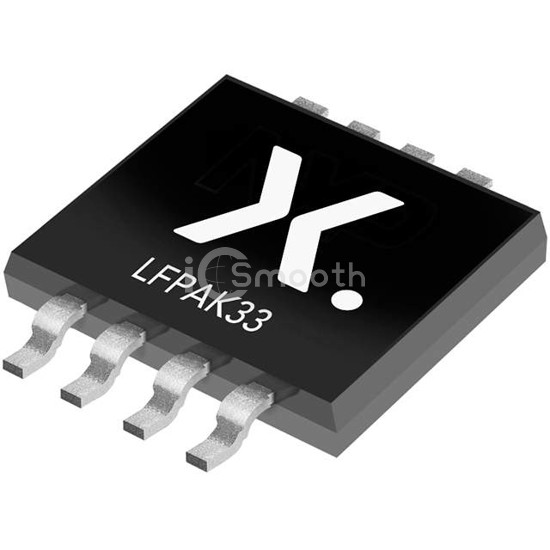

MOSFET N-CH 25V 70A LFPAK33

PSMN3R9-25MLC,115 is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 25V 70A LFPAK33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1210, 8-LFPAK33 (5-Lead).

Datasheet Request a Quote

In Stock: 18

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs4.15mOhm @ 25A, 10V
Vgs(th) (Max) @ Id2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs21.5 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1524 pF @ 12.5 V
FET Feature-
Power Dissipation (Max)69W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK33
Package / CaseSOT-1210, 8-LFPAK33 (5-Lead)
