Name: PSMN3R8-100BS,118
Brand: Nexperia USA Inc.
SKU: PSMN3R8-100BS,118
Price: 1.43 USD
Availability: InStock

REF: PSMN3R8-100BS,118 Nexperia USA Inc.

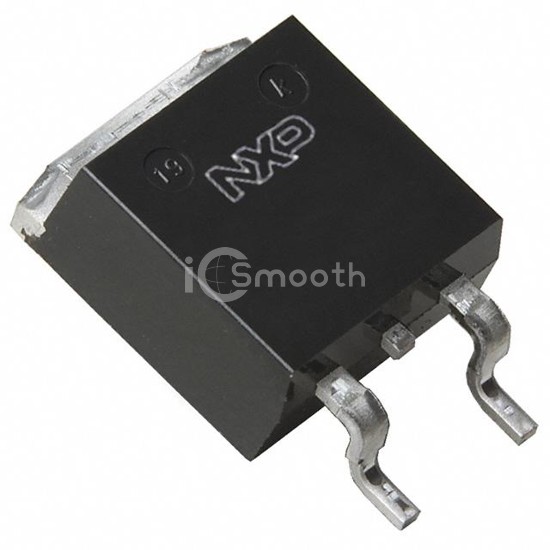

PSMN3R8-100BS,118

Nexperia USA Inc.

MOSFET N-CH 100V 120A D2PAK

PSMN3R8-100BS,118 is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 100V 120A D2PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 3,922

Tiered Pricing USD

800+ $1.4290 —

1,600+ $1.3438 -6% BEST

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3.9mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	170 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	9900 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	306W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
