PSMN3R5-80YSFX

In Stock: 8,236

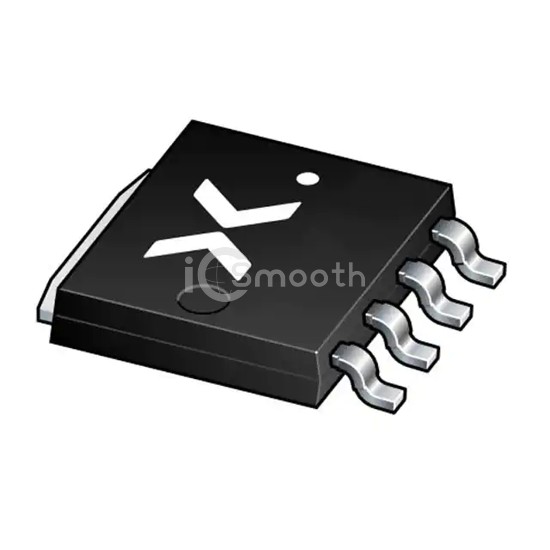

PSMN3R5-80YSFX - Nexperia USA Inc. - Transistors - FETs, MOSFETs - Single
REF: PSMN3R5-80YSFX Nexperia USA Inc.
PSMN3R5-80YSFX

Nexperia USA Inc.

NEXTPOWER 80 V, 3.5 MOHM, 150 A,

PSMN3R5-80YSFX is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. NEXTPOWER 80 V, 3.5 MOHM, 150 A,. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1023, 4-LFPAK.

Datasheet Request a Quote

In Stock: 8,236

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)80 V
Current - Continuous Drain (Id) @ 25°C150A (Ta)
Drive Voltage (Max Rds On, Min Rds On)7V, 10V
Rds On (Max) @ Id, Vgs3.5mOhm @ 25A, 10V
Vgs(th) (Max) @ Id4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs108 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds7227 pF @ 40 V
FET Feature-
Power Dissipation (Max)294W (Ta)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK56, Power-SO8
Package / CaseSOT-1023, 4-LFPAK
