Name: PSMN2R0-55YLHX
Brand: Nexperia USA Inc.
SKU: PSMN2R0-55YLHX
Price: 4.37 USD
Availability: InStock

REF: PSMN2R0-55YLHX Nexperia USA Inc.

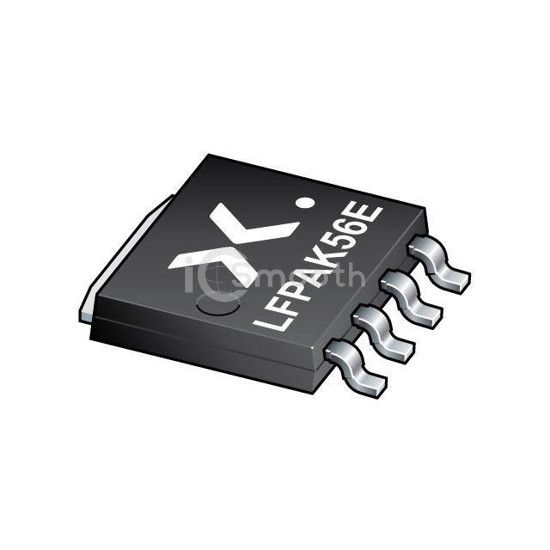

PSMN2R0-55YLHX

Nexperia USA Inc.

PSMN2R0-55YLH/SOT1023/4 LEADS

PSMN2R0-55YLHX is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. PSMN2R0-55YLH/SOT1023/4 LEADS. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1023, 4-LFPAK.

Datasheet Request a Quote

In Stock: 6,028

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55 V
Current - Continuous Drain (Id) @ 25°C	200A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.1mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	2.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	184 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	11353 pF @ 27 V
FET Feature	-
Power Dissipation (Max)	333W (Ta)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	LFPAK56, Power-SO8
Package / Case	SOT-1023, 4-LFPAK
