PSMN1R5-50YLHX

In Stock: 6,756

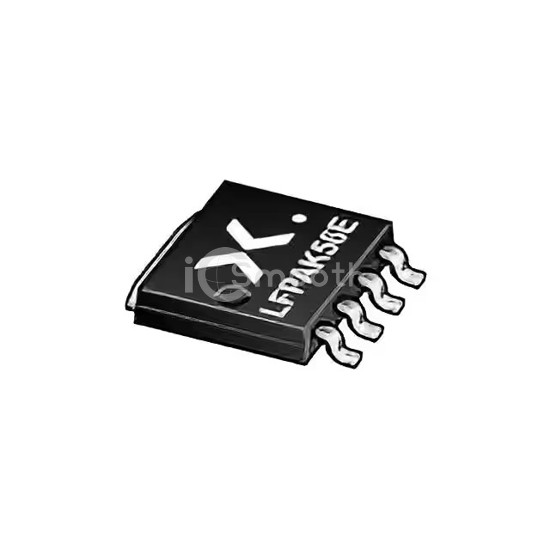

PSMN1R5-50YLHX - Nexperia USA Inc. - Transistors - FETs, MOSFETs - Single
REF: PSMN1R5-50YLHX Nexperia USA Inc.
PSMN1R5-50YLHX

Nexperia USA Inc.

PSMN1R5-50YLH/SOT1023/4 LEADS

PSMN1R5-50YLHX is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. PSMN1R5-50YLH/SOT1023/4 LEADS. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1023, 4-LFPAK.

Datasheet Request a Quote

In Stock: 6,756

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)50 V
Current - Continuous Drain (Id) @ 25°C200A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1.75mOhm @ 25A, 10V
Vgs(th) (Max) @ Id2.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs181 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds11143 pF @ 25 V
FET Feature-
Power Dissipation (Max)333W (Ta)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK56, Power-SO8
Package / CaseSOT-1023, 4-LFPAK
