PSMN1R4-40YLD,115-NEX

In Stock: 6,273

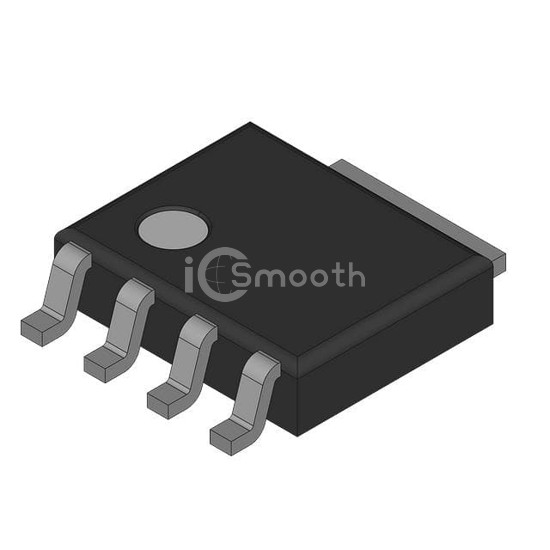

PSMN1R4-40YLD,115-NEX - Nexperia USA Inc. - Transistors - FETs, MOSFETs - Single
REF: PSMN1R4-40YLD,115-NEX Nexperia USA Inc.
PSMN1R4-40YLD,115-NEX

Nexperia USA Inc.

100A, 40V, 0.00185OHM, N CHANNEL

PSMN1R4-40YLD,115-NEX is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. 100A, 40V, 0.00185OHM, N CHANNEL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SC-100, SOT-669.

Datasheet Request a Quote

In Stock: 6,273

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1.4mOhm @ 25A, 10V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds-
FET Feature-
Power Dissipation (Max)238W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK56, Power-SO8
Package / CaseSC-100, SOT-669
