PSMN1R2-55SLH

In Stock: 7,158

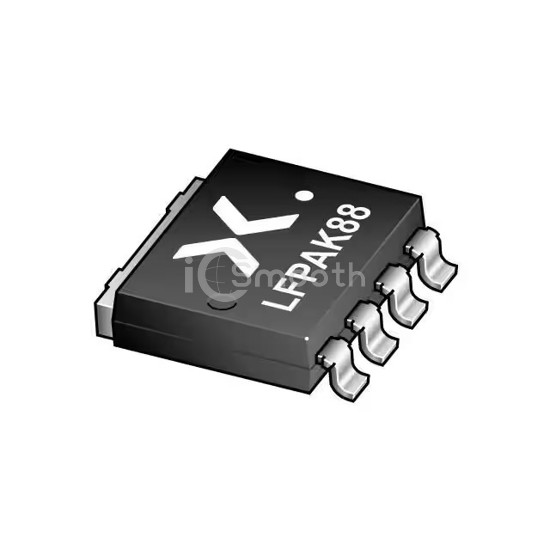

PSMN1R2-55SLH - Nexperia USA Inc. - Transistors - FETs, MOSFETs - Single
REF: PSMN1R2-55SLH Nexperia USA Inc.
PSMN1R2-55SLH

Nexperia USA Inc.

N-CHANNEL 55 V, 1.03 MOHM, 330 A

PSMN1R2-55SLH is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. N-CHANNEL 55 V, 1.03 MOHM, 330 A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1235.

Datasheet Request a Quote

In Stock: 7,158

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)55 V
Current - Continuous Drain (Id) @ 25°C330A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1.03mOhm @ 25A, 10V
Vgs(th) (Max) @ Id2.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs395 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds25773 pF @ 27 V
FET FeatureSchottky Diode (Isolated)
Power Dissipation (Max)375W (Ta)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK88 (SOT1235)
Package / CaseSOT-1235
