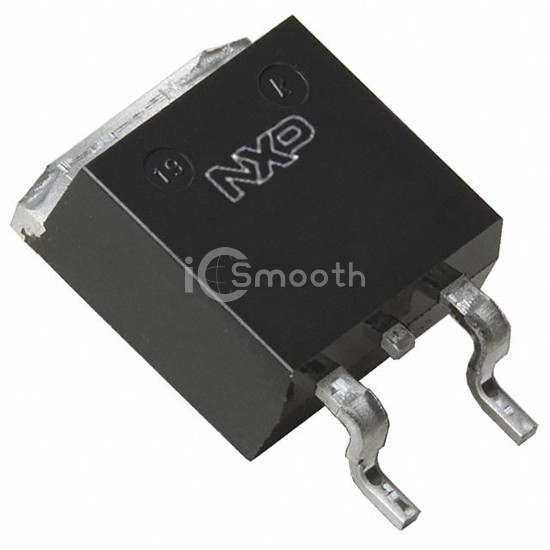

Name: PSMN012-80BS,118
Brand: Nexperia USA Inc.
SKU: PSMN012-80BS,118
Price: 0.64 USD
Availability: InStock

REF: PSMN012-80BS,118 Nexperia USA Inc.

PSMN012-80BS,118

Nexperia USA Inc.

MOSFET N-CH 80V 74A D2PAK

PSMN012-80BS,118 is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 80V 74A D2PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 2,238

Tiered Pricing USD

800+ $0.6386 —

1,600+ $0.5883 -8%

2,400+ $0.5626 -12%

4,000+ $0.5338 -16%

5,600+ $0.5190 -19% BEST

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	74A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	11mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	43 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2782 pF @ 12 V
FET Feature	-
Power Dissipation (Max)	148W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
