Name: PMZB950UPEYL
Brand: Nexperia USA Inc.
SKU: PMZB950UPEYL
Price: 0.47 USD
Availability: InStock

REF: PMZB950UPEYL Nexperia USA Inc.

PMZB950UPEYL

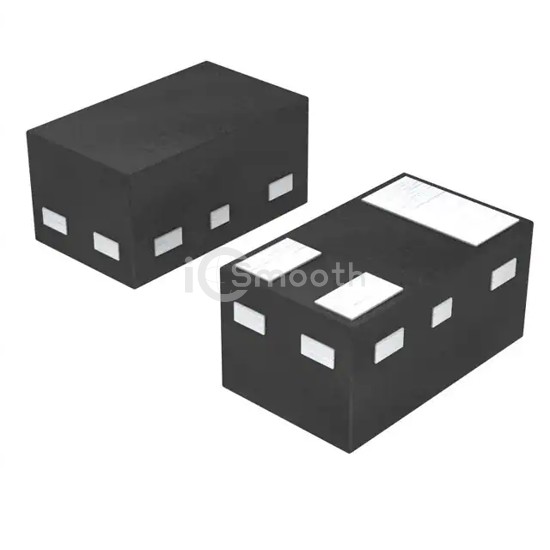

MOSFET P-CH 20V 500MA DFN1006B-3

PMZB950UPEYL is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET P-CH 20V 500MA DFN1006B-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.

Datasheet Request a Quote

In Stock: 205

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	500mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.2V, 4.5V
Rds On (Max) @ Id, Vgs	1.4Ohm @ 500mA, 4.5V
Vgs(th) (Max) @ Id	950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	2.1 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	43 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	360mW (Ta), 2.7W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DFN1006B-3
Package / Case	3-XFDFN
