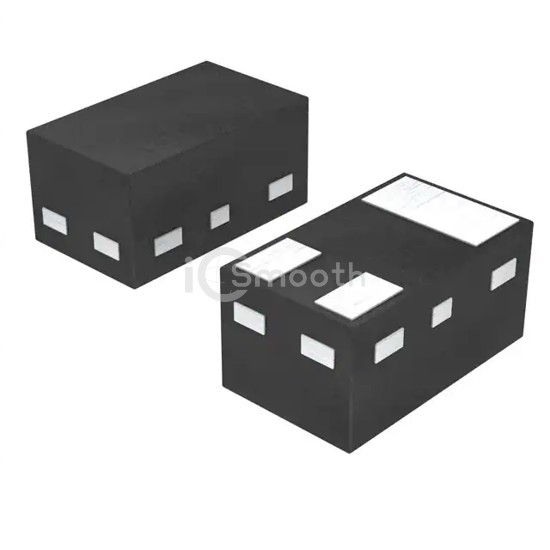

Name: PMZB290UN,315
Brand: Nexperia USA Inc.
SKU: PMZB290UN,315
Price: 0.35 USD
Availability: InStock

REF: PMZB290UN,315 Nexperia USA Inc.

PMZB290UN,315

Nexperia USA Inc.

MOSFET N-CH 20V 1A DFN1006B-3

PMZB290UN,315 is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 20V 1A DFN1006B-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.

Datasheet Request a Quote

In Stock: 5,490

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	380mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id	950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.68 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	83 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	360mW (Ta), 2.7W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DFN1006B-3
Package / Case	3-XFDFN
