Name: PMX100UNZ
Brand: Nexperia USA Inc.
SKU: PMX100UNZ
Price: 0.49 USD
Availability: InStock

REF: PMX100UNZ Nexperia USA Inc.

PMX100UNZ

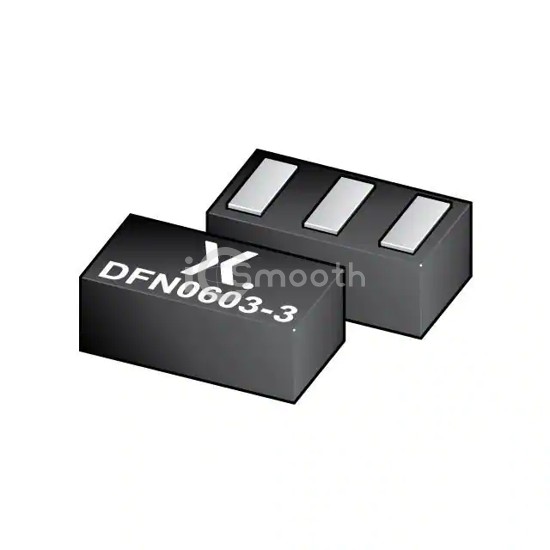

PMX100UN/SOT8013/DFN0603-3

PMX100UNZ is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. PMX100UN/SOT8013/DFN0603-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 4,858

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	1.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	210mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	2.3 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	144 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	300mW (Ta), 4.7W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DFN0603-3 (SOT8013)
Package / Case	0201 (0603 Metric)
