Name: PMPB17EPX
Brand: Nexperia USA Inc.
SKU: PMPB17EPX
Price: 0.44 USD
Availability: InStock

REF: PMPB17EPX Nexperia USA Inc.

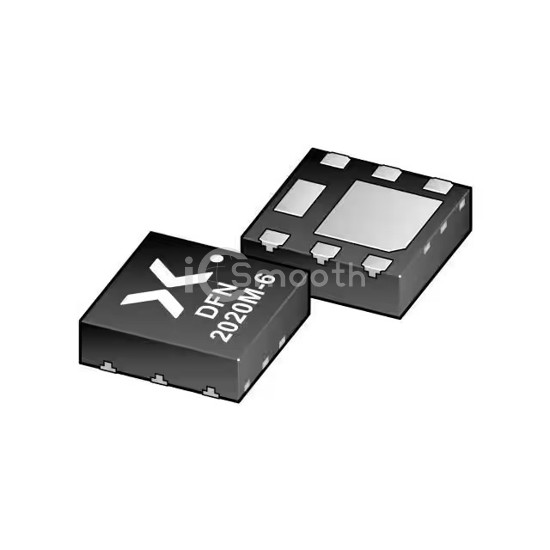

PMPB17EPX

P-CHANNEL TRENCH MOSFET

PMPB17EPX is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. P-CHANNEL TRENCH MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,965

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	7.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	21mOhm @ 5.8A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	47 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1570 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	1.9W (Ta), 13W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DFN2020M-6
Package / Case	6-UDFN Exposed Pad
