Name: PMN48XPA2X
Brand: Nexperia USA Inc.
SKU: PMN48XPA2X
Price: 0.48 USD
Availability: InStock

REF: PMN48XPA2X Nexperia USA Inc.

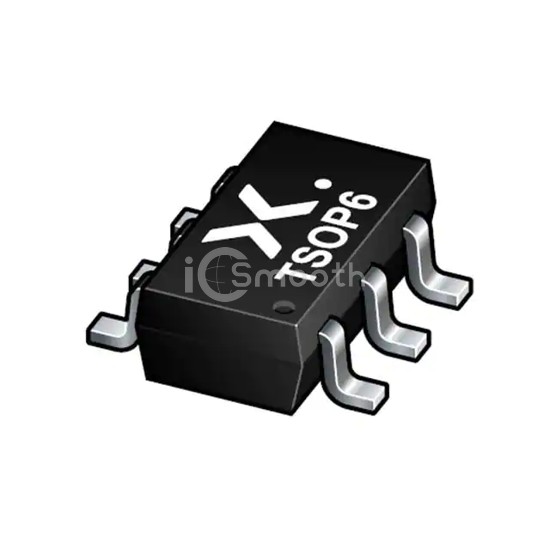

PMN48XPA2X

MOSFET P-CH 20V 4.4A 6TSOP

PMN48XPA2X is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET P-CH 20V 4.4A 6TSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SC-74, SOT-457.

Request a Quote

In Stock: 200

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	4.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 8V
Rds On (Max) @ Id, Vgs	49mOhm @ 4.4A, 8V
Vgs(th) (Max) @ Id	1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	679 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	660mW (Ta), 7.5W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-TSOP
Package / Case	SC-74, SOT-457
