Name: PMN40SNAX
Brand: Nexperia USA Inc.
SKU: PMN40SNAX
Price: 0.47 USD
Availability: InStock

REF: PMN40SNAX Nexperia USA Inc.

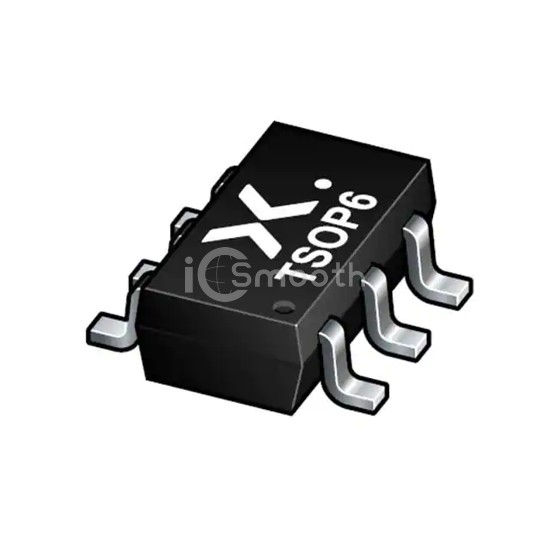

PMN40SNAX

MOSFET N-CH 60V 4.7A 6TSOP

PMN40SNAX is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 60V 4.7A 6TSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SC-74, SOT-457.

Request a Quote

In Stock: 2,948

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	4.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	36mOhm @ 4.7A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	14 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	453 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	1.8W
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-TSOP
Package / Case	SC-74, SOT-457
