Name: PMN30XPAX
Brand: Nexperia USA Inc.
SKU: PMN30XPAX
Price: 0.50 USD
Availability: InStock

REF: PMN30XPAX Nexperia USA Inc.

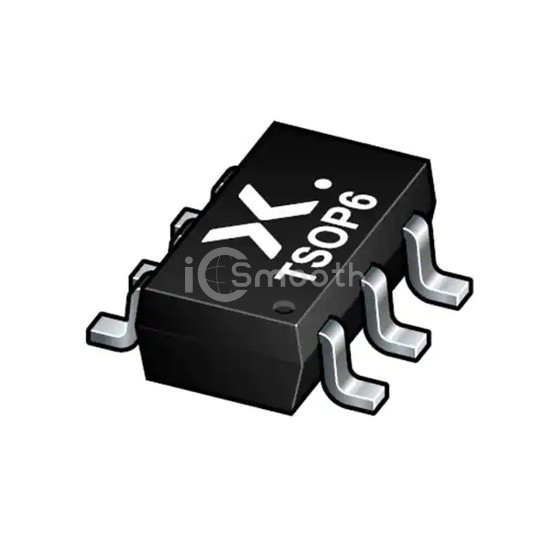

PMN30XPAX

MOSFET P-CH 20V 5.2A 6TSOP

PMN30XPAX is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET P-CH 20V 5.2A 6TSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SC-74, SOT-457.

Request a Quote

In Stock: 20

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	5.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 8V
Rds On (Max) @ Id, Vgs	33mOhm @ 5.2A, 8V
Vgs(th) (Max) @ Id	1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	16 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	1039 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	660mW (Ta), 7.5W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-TSOP
Package / Case	SC-74, SOT-457
