Name: PMN28UNEX
Brand: Nexperia USA Inc.
SKU: PMN28UNEX
Price: 0.09 USD
Availability: InStock

REF: PMN28UNEX Nexperia USA Inc.

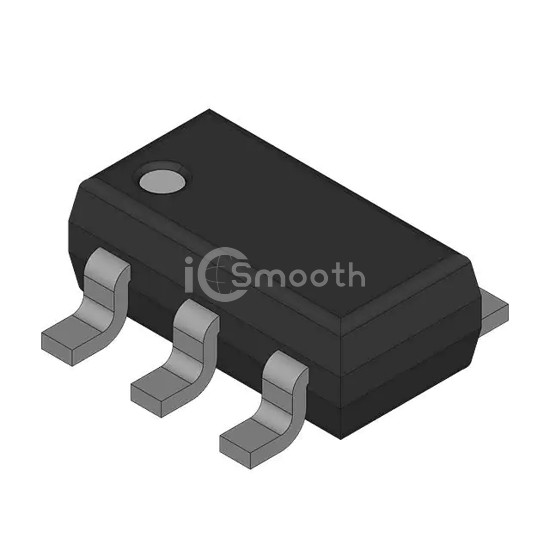

PMN28UNEX

PMN28UNE - 20 V, N-CHANNEL TRENC

PMN28UNEX is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. PMN28UNE - 20 V, N-CHANNEL TRENC. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-74, SOT-457.

Datasheet Request a Quote

In Stock: 35,468

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	5.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	32mOhm @ 5.5A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	490 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	570mW (Ta), 6.25W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-TSOP
Package / Case	SC-74, SOT-457
