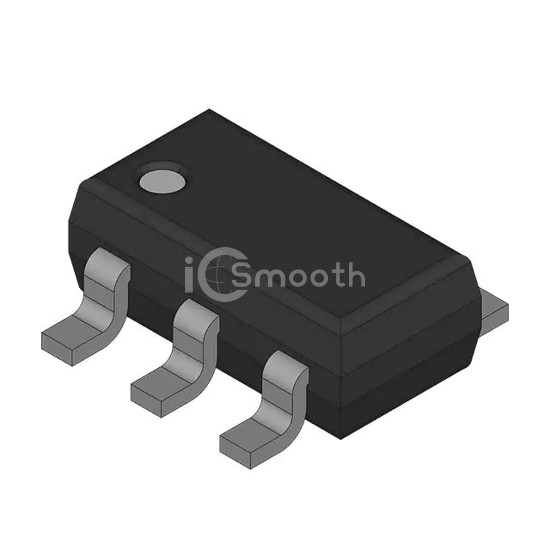

Name: PMN120ENEX
Brand: Nexperia USA Inc.
SKU: PMN120ENEX
Availability: InStock

REF: PMN120ENEX Nexperia USA Inc.

PMN120ENEX

PMN120ENE - 60V, N-CHANNEL TRENC

PMN120ENEX is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. PMN120ENE - 60V, N-CHANNEL TRENC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-74, SOT-457.

Datasheet Request a Quote

In Stock: 6,068

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	3.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	123mOhm @ 2.4A, 10V
Vgs(th) (Max) @ Id	2.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	7.4 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	275 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	1.4W (Ta), 6.25W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-TSOP
Package / Case	SC-74, SOT-457
