Name: PMH600UNEH
Brand: Nexperia USA Inc.
SKU: PMH600UNEH
Price: 0.35 USD
Availability: InStock

REF: PMH600UNEH Nexperia USA Inc.

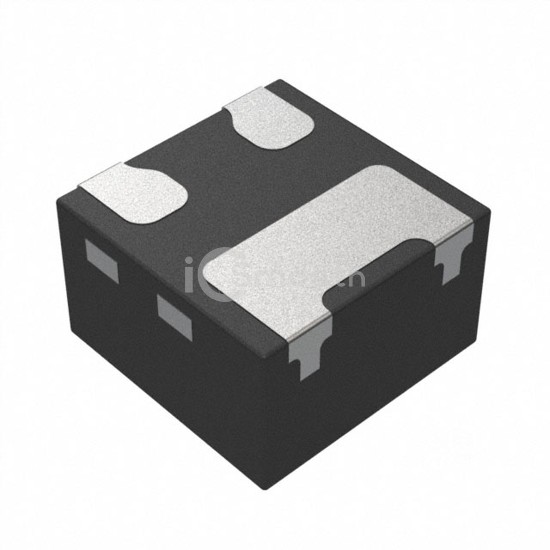

PMH600UNEH

MOSFET N-CH 20V 800MA DFN0606-3

PMH600UNEH is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 20V 800MA DFN0606-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.

Datasheet Request a Quote

In Stock: 9,909

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	800mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.2V, 4.5V
Rds On (Max) @ Id, Vgs	620mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id	0.95V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.31 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	21.3 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	370mW (Ta), 2.2W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DFN0606-3
Package / Case	3-XFDFN
