Name: PMH1200UPEH
Brand: Nexperia USA Inc.
SKU: PMH1200UPEH
Price: 0.36 USD
Availability: InStock

REF: PMH1200UPEH Nexperia USA Inc.

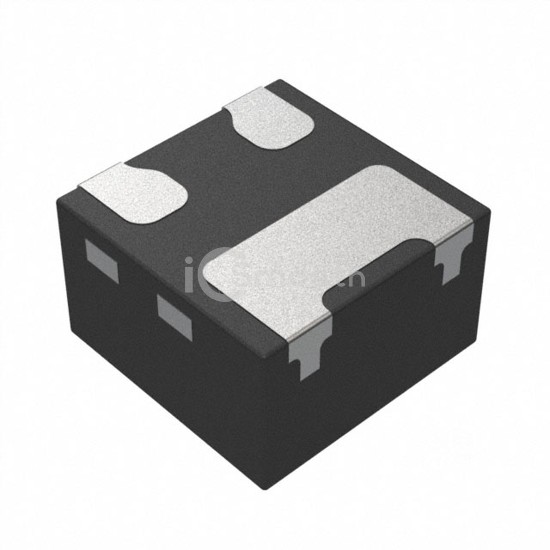

PMH1200UPEH

MOSFET P-CH 30V 520MA DFN0606-3

PMH1200UPEH is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET P-CH 30V 520MA DFN0606-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.

Datasheet Request a Quote

In Stock: 20,399

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	520mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	1.6Ohm @ 410mA, 4.5V
Vgs(th) (Max) @ Id	0.95V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1 nC @ 5 V

Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	33 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	380mW (Ta), 2.8W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DFN0606-3
Package / Case	3-XFDFN
