Name: PMCM6501UPEZ
Brand: Nexperia USA Inc.
SKU: PMCM6501UPEZ
Price: 0.62 USD
Availability: InStock

REF: PMCM6501UPEZ Nexperia USA Inc.

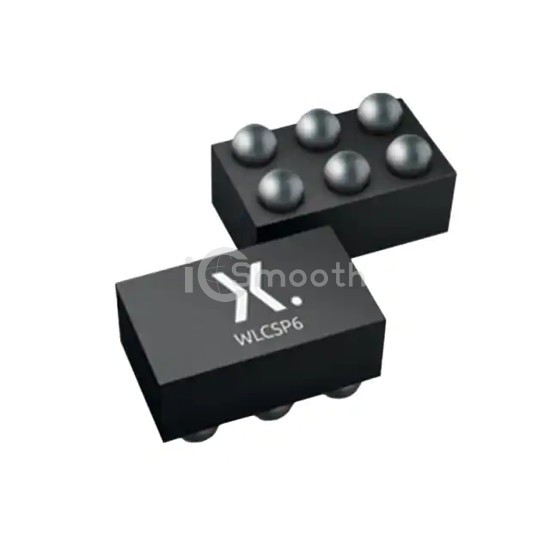

PMCM6501UPEZ

MOSFET P-CH 20V 6WLCSP

PMCM6501UPEZ is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET P-CH 20V 6WLCSP. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 6-XFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 256

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	7.3A (Tj)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	-
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	19.1 nC @ 4.5 V

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	-
FET Feature	-
Power Dissipation (Max)	556mW
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-WLCSP (1.48x0.98)
Package / Case	6-XFBGA, WLCSP
