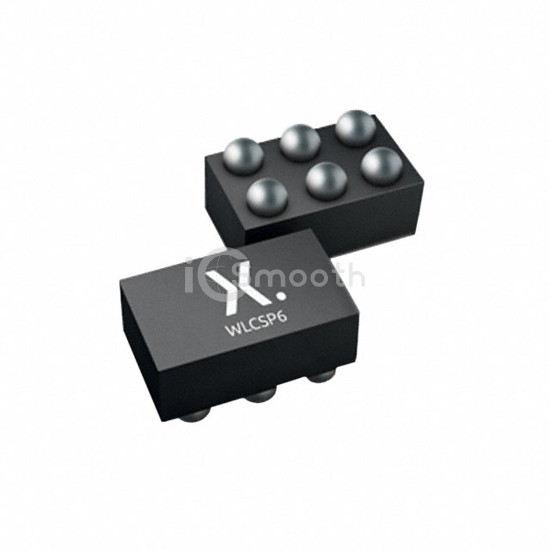

Name: PMCM6501UNEZ
Brand: Nexperia USA Inc.
SKU: PMCM6501UNEZ
Price: 0.62 USD
Availability: InStock

REF: PMCM6501UNEZ Nexperia USA Inc.

PMCM6501UNEZ

MOSFET N-CH 20V 8.7A 6WLCSP

PMCM6501UNEZ is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 20V 8.7A 6WLCSP. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 6-XFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 60

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	8.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	21mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id	0.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.2 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	105 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	400mW
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-WLCSP (1.48x0.98)
Package / Case	6-XFBGA, WLCSP
