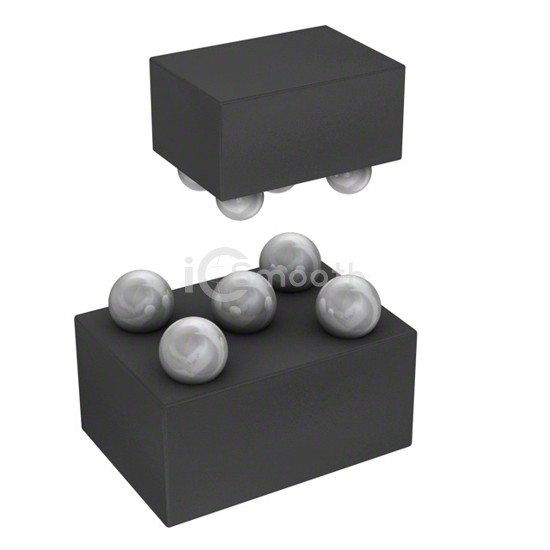

Name: PMCM4401UPEZ
Brand: Nexperia USA Inc.
SKU: PMCM4401UPEZ
Price: 0.13 USD
Availability: InStock

REF: PMCM4401UPEZ Nexperia USA Inc.

PMCM4401UPEZ

MOSFET P-CH 20V 4A 4WLCSP

PMCM4401UPEZ is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET P-CH 20V 4A 4WLCSP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-XFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 7,384

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	95mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	420 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	400mW (Ta), 12.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-WLCSP (0.78x0.78)
Package / Case	4-XFBGA, WLCSP
