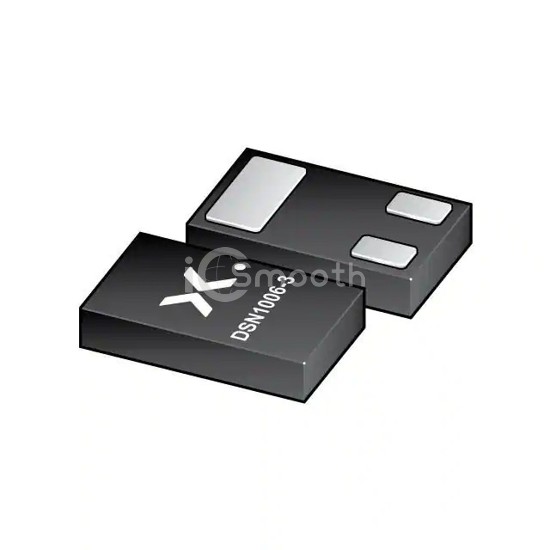

Name: PMCB60XNZ
Brand: Nexperia USA Inc.
SKU: PMCB60XNZ
Price: 0.55 USD
Availability: InStock

REF: PMCB60XNZ Nexperia USA Inc.

PMCB60XNZ

PMCB60XN/NAX000/NONE

PMCB60XNZ is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. PMCB60XN/NAX000/NONE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-101, SOT-883.

Datasheet Request a Quote

In Stock: 17,110

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	50mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id	1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	2.7 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	241 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	480mW (Ta), 7W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-883
Package / Case	SC-101, SOT-883
