Name: PMCA14UNYL
Brand: Nexperia USA Inc.
SKU: PMCA14UNYL
Price: 0.17 USD
Availability: InStock

REF: PMCA14UNYL Nexperia USA Inc.

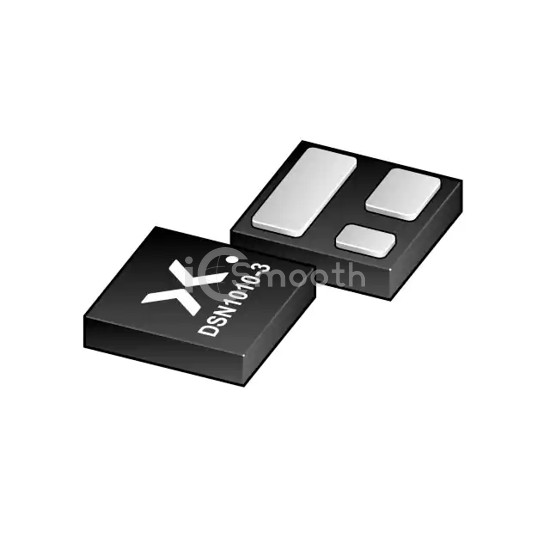

PMCA14UNYL

SMALL SIGNAL MOSFET FOR MOBILE

PMCA14UNYL is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. SMALL SIGNAL MOSFET FOR MOBILE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XDFN.

Datasheet Request a Quote

In Stock: 5,000

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	11A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	16mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	12 nC @ 3.3 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	855 pF @ 6 V
FET Feature	-
Power Dissipation (Max)	1.2W (Ta), 31W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DSN1010-3
Package / Case	3-XDFN
