Name: PHD9NQ20T,118
Brand: Nexperia USA Inc.
SKU: PHD9NQ20T,118
Price: 0.76 USD
Availability: InStock

REF: PHD9NQ20T,118 Nexperia USA Inc.

PHD9NQ20T,118

Nexperia USA Inc.

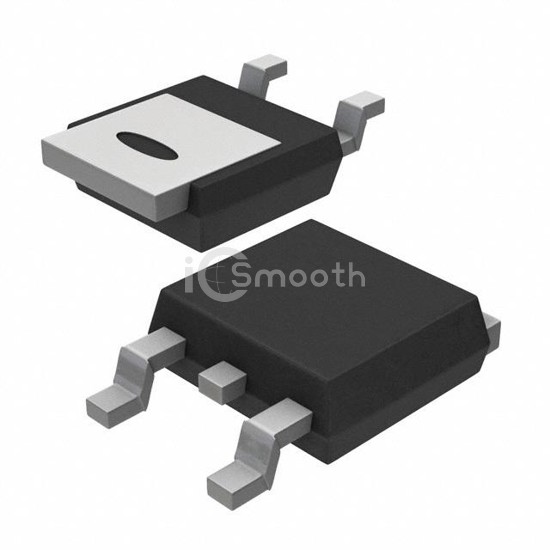

MOSFET N-CH 200V 8.7A DPAK

PHD9NQ20T,118 is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 200V 8.7A DPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 8,585

Tiered Pricing USD

2,500+ $0.7583 —

5,000+ $0.7375 -3% BEST

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	8.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	400mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	24 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	959 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	88W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DPAK
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
