Name: PHD38N02LT,118
Brand: Nexperia USA Inc.
SKU: PHD38N02LT,118
Price: 0.46 USD
Availability: InStock

REF: PHD38N02LT,118 Nexperia USA Inc.

PHD38N02LT,118

Nexperia USA Inc.

MOSFET N-CH 20V 44.7A DPAK

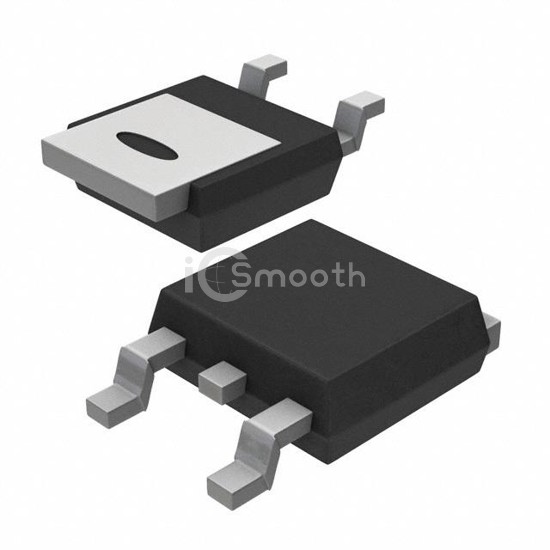

PHD38N02LT,118 is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 20V 44.7A DPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 8,733

Tiered Pricing USD

2,500+ $0.4604 —

5,000+ $0.4279 -7%

7,500+ $0.4125 -10% BEST

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	44.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	5V
Rds On (Max) @ Id, Vgs	16mOhm @ 25A, 5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	15.1 nC @ 5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	800 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	57.6W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DPAK
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
