Name: PH1330AL,115
Brand: Nexperia USA Inc.
SKU: PH1330AL,115
Availability: InStock

REF: PH1330AL,115 Nexperia USA Inc.

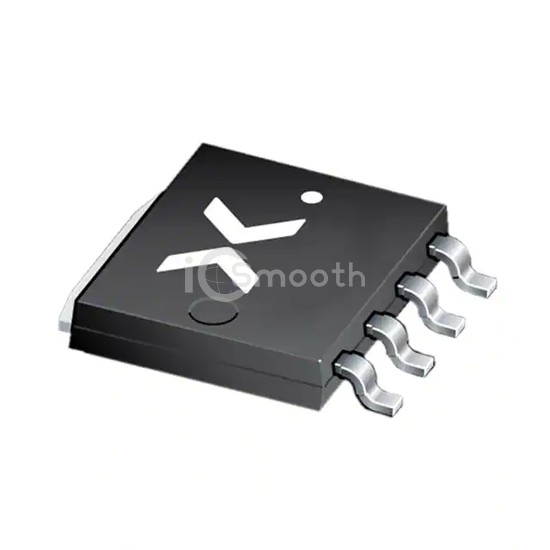

PH1330AL,115

MOSFET N-CH 30V 100A LFPAK56

PH1330AL,115 is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 30V 100A LFPAK56. Key specifications: mounting type Surface Mount, package / case SOT-1023, 4-LFPAK.

Request a Quote

In Stock: 1,730

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	1.3mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	100 nC @ 10 V

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	6227 pF @ 12 V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-
Mounting Type	Surface Mount
Supplier Device Package	LFPAK56; Power-SO8
Package / Case	SOT-1023, 4-LFPAK
