Name: NX7002BKHH
Brand: Nexperia USA Inc.
SKU: NX7002BKHH
Price: 0.28 USD
Availability: InStock

REF: NX7002BKHH Nexperia USA Inc.

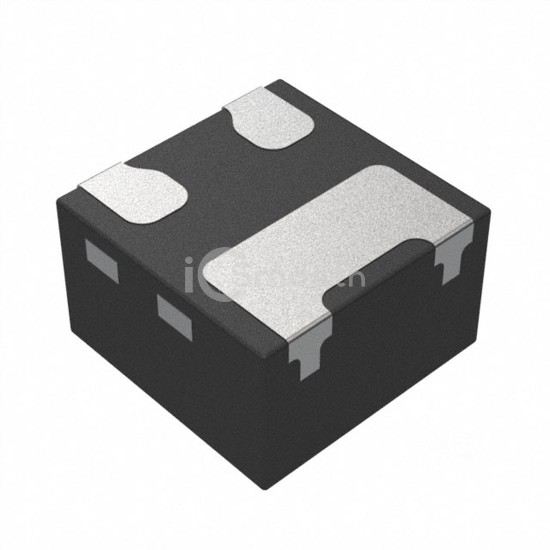

NX7002BKHH

MOSFET N-CH 60V 350MA DFN0606-3

NX7002BKHH is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 60V 350MA DFN0606-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.

Datasheet Request a Quote

In Stock: 10,312

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	350mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.8Ohm @ 200mA, 10V
Vgs(th) (Max) @ Id	2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	22.2 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	380mW (Ta), 2.8W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DFN0606-3
Package / Case	3-XFDFN
