Name: NX6008NBKWX
Brand: Nexperia USA Inc.
SKU: NX6008NBKWX
Price: 0.24 USD
Availability: InStock

REF: NX6008NBKWX Nexperia USA Inc.

NX6008NBKWX

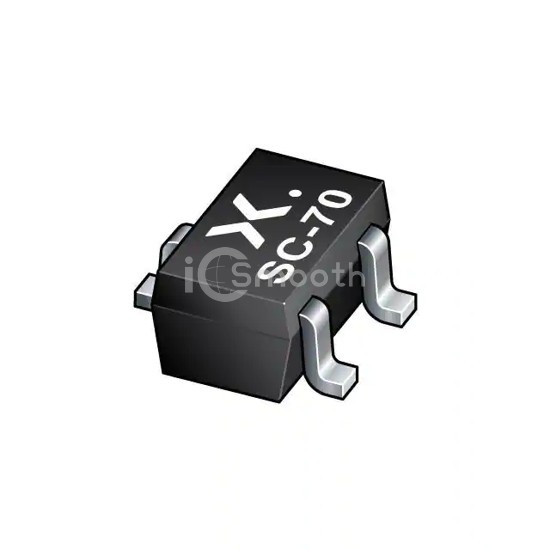

NX6008NBKW/SOT323/SC-70

NX6008NBKWX is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. NX6008NBKW/SOT323/SC-70. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-70, SOT-323.

Datasheet Request a Quote

In Stock: 1,613

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	250mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	2.8Ohm @ 300mA, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.7 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	27 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	270mW (Ta), 1.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-323
Package / Case	SC-70, SOT-323
